Specification:

Size:200 * 200 * 60mm

Working Voltage:AC110V(85V-110V)&AC220V(190V-250V)

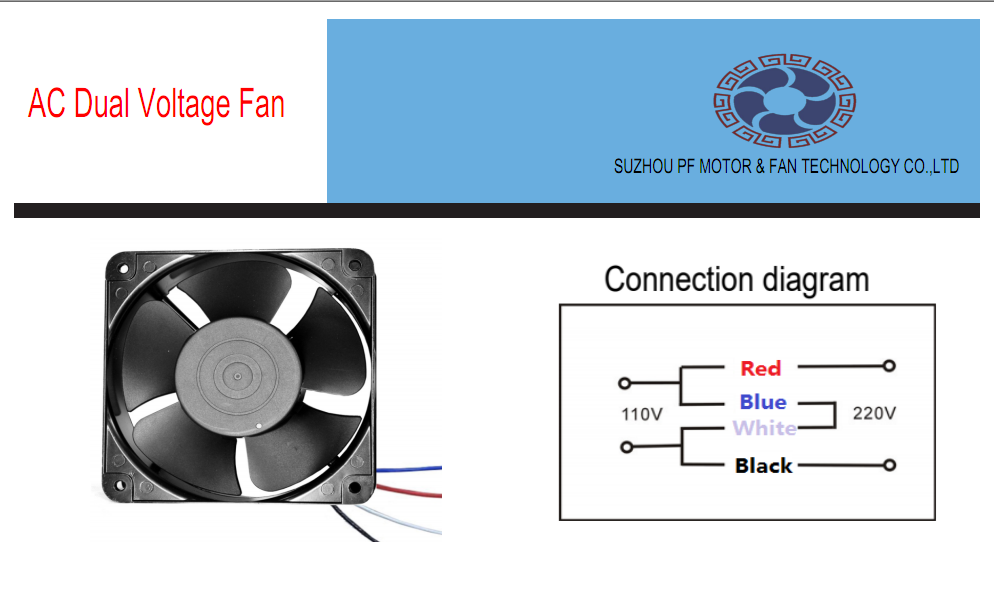

Dual Voltage can work :

Current:0.80/0.66A /0.40/0.33A

Frequency:50/60 (Hz)

Power:48/45 (W)

Speed:2700/3000（RPM）

Air flow:393/442（CFM）

Pressure:27.6/30.6（mmH2O）

Noise:71/81 (dBA)

Weight:1700 (g)

Certification: CE ROSH

Packing:10PCS/CTN Each one with one white box or As The customers’ requirement

Material:

Frame:: Aluminum Alloy

Impeller: PlasticP.B.T.

Coil:Enamelledcopper wire

Motor: Shade Pole Induction Motor

Bear type: Ball bearing/Sleeve bearing

Lead Type:Wire Lead /Terminal

Performance:

Insulation Resistance:10MΩ at 500VDC between lead and frame

Operation Temperature:-20°C~80°C

Dielectric Strength:1 min at 1800vac/50-60Hz,Current＜5mA

Operation Humidity:20%~85%

Use of life:Ball bearing 50,000 hours and Sleeve bearing20,000 hours (at 25°C)

AC FANS/AC AXIAL FANS /COMPACT COOLING FANS

AC TUBULARFANS /AC COOLING FANS

Special can be customized
