Specification:

Size:92 * 92* 25mm

Working Voltage:AC110V(85V-110V)&AC220V(190V-250V)

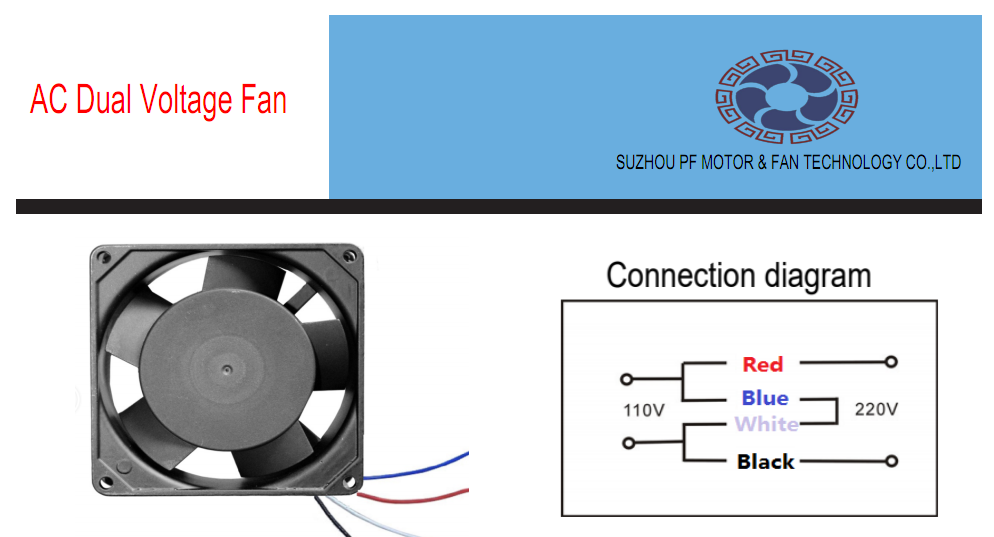

DualVoltage can work :

Current:0.18/0.14A/0.09/0.07A

Frequency:50/60(Hz)

Power:15/13(W)

Speed:2400/2800（RPM）

Air flow:24/33（CFM）

Pressure:3.1/4.2（mmH2O）

Noise:33/35(dBA)

Weight:270(g)

Certification:CE ROSH

Packing:50PCS/CTNEach one with one white box or As The customers’ requirement

Material:

Frame:: AluminumAlloy

Impeller:PlasticP.B.T.

Coil:Enamelled copper wire

Motor:Shade Pole Induction Motor

Bear type:Ball bearing/Sleeve bearing

LeadType:Wire Lead /Terminal

Performance:

InsulationResistance:10MΩ at 500VDCbetween lead and frame

OperationTemperature:-20°C~80°C

DielectricStrength:1 min at 1800vac/50-60Hz,Current＜5mA

OperationHumidity:20%~85%

Use of life:Ballbearing 50,000 hours and Sleeve bearing 20,000 hours (at 25°C)

AC FANS /AC AXIAL FANS /COMPACT COOLING FANS

AC TUBULAR FANS /AC COOLING FANS

Special can be customized
