Specifications:

Size:120 * 120 * 25mm

Working Voltage:AC110V(85V-110V)&AC220V(190V-250V)

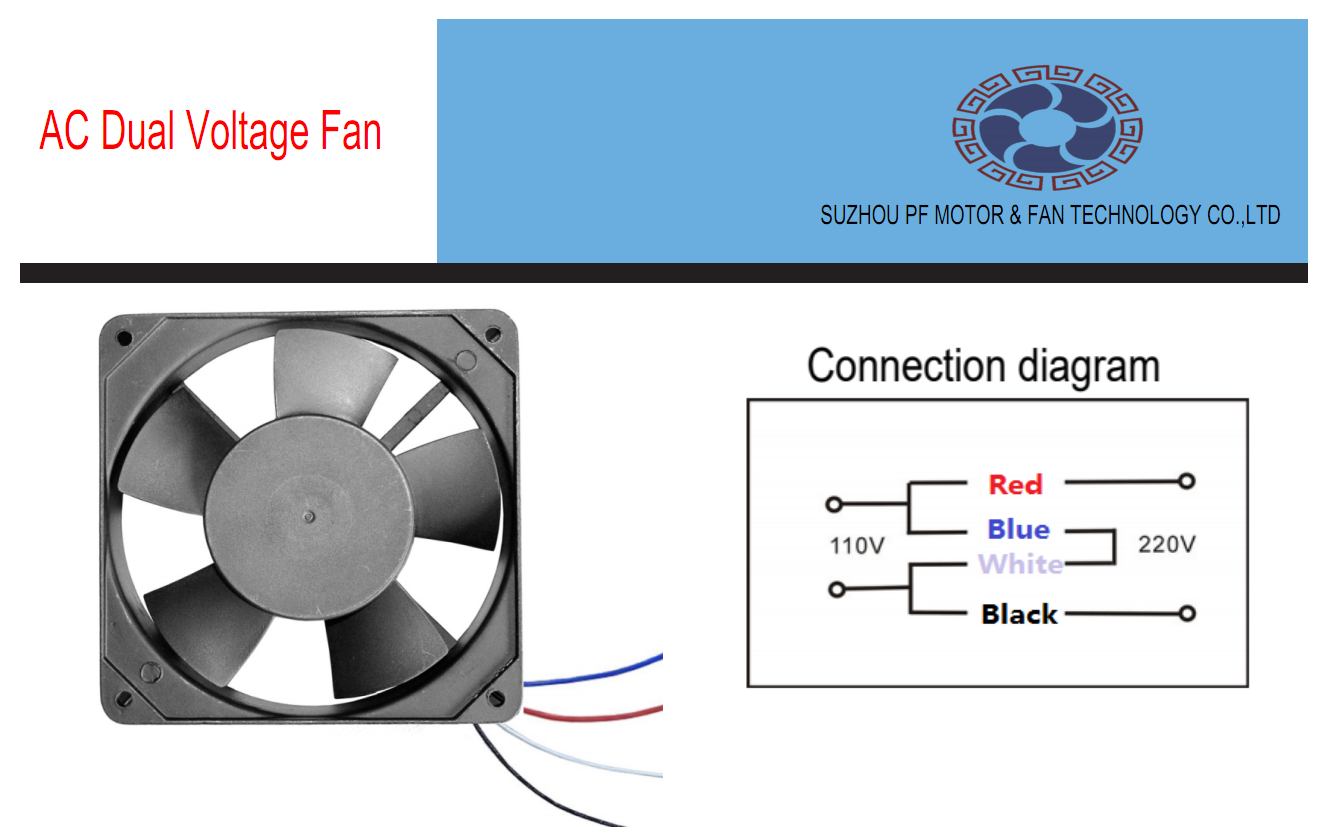

Dual Voltage can work :

Current:0.18/0.14A /0.09/0.07A

Frequency:50/60 (Hz)

Power:15/13 (W)

Speed:2300/2500（RPM）

Air flow:57/63（CFM）

Pressure:3.8/4.1（mmH2O）

Noise:34/37 (dBA)

Weight:330 (g)

Certification: CE ROSH

Packing:40PCS/CTN Each one with one white box or As The customers’ requirement

Material:

Frame:: AluminumAlloy

Impeller: PlasticP.B.T.

Coil:Enamelledcopper wire

Motor: Shade Pole Induction Motor

Bear type: Ball bearing/Sleeve bearing

Lead Type:Wire Lead /Terminal

Performance:

Insulation Resistance:10MΩ at 500VDC between lead and frame

Operation Temperature:-20°C~80°C

Dielectric Strength:1 min at 1800vac/50-60Hz,Current＜5mA

Operation Humidity:20%~85%

Use of life:Ball bearing 50,000 hours and Sleeve bearing20,000 hours (at 25°C)

 AC FANS/AC AXIAL FANS /COMPACT COOLING FANS

AC TUBULAR FANS /AC COOLING FANS

Special can be customized
