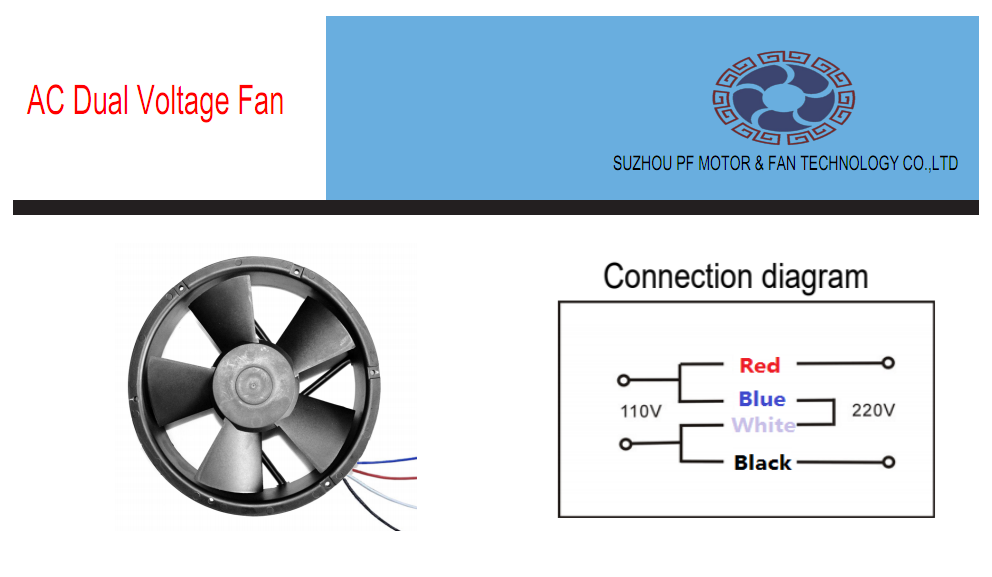

Specification:

Size: Φ 200 * 60mm

Working Voltage:AC110V(85V-110V)&AC220V(190V-250V)

DualVoltage can work :

Current:0.80/0.66A/0.40/0.33A

Frequency:50/60(Hz)

Power:48/45(W)

Speed:2700/3000（RPM）

Air flow:393/442（CFM）

Pressure:27.6/30.6（mmH2O）

Noise:71/81(dBA)

Weight:1700(g)

Certification:CE ROSH

Packing:10PCS/CTNEach one with one white box or As Thecustomers’ requirement

Material:

Frame:: AluminumAlloy

Impeller:PlasticP.B.T.

Coil:Enamelled copper wire

Motor:Shade Pole Induction Motor

Beartype: Ball bearing/Sleeve bearing

LeadType:Wire Lead /Terminal

Performance:

InsulationResistance:10MΩ at 500VDCbetween lead and frame

OperationTemperature:-20°C~80°C

DielectricStrength:1 min at 1800vac/50-60Hz,Current＜5mA

OperationHumidity:20%~85%

Use of life:Ballbearing 50,000 hours and Sleeve bearing 20,000 hours (at 25°C)

AC FANS /AC AXIAL FANS /COMPACT COOLING FANS

AC TUBULAR FANS /AC COOLING FANS

Special can be customized
