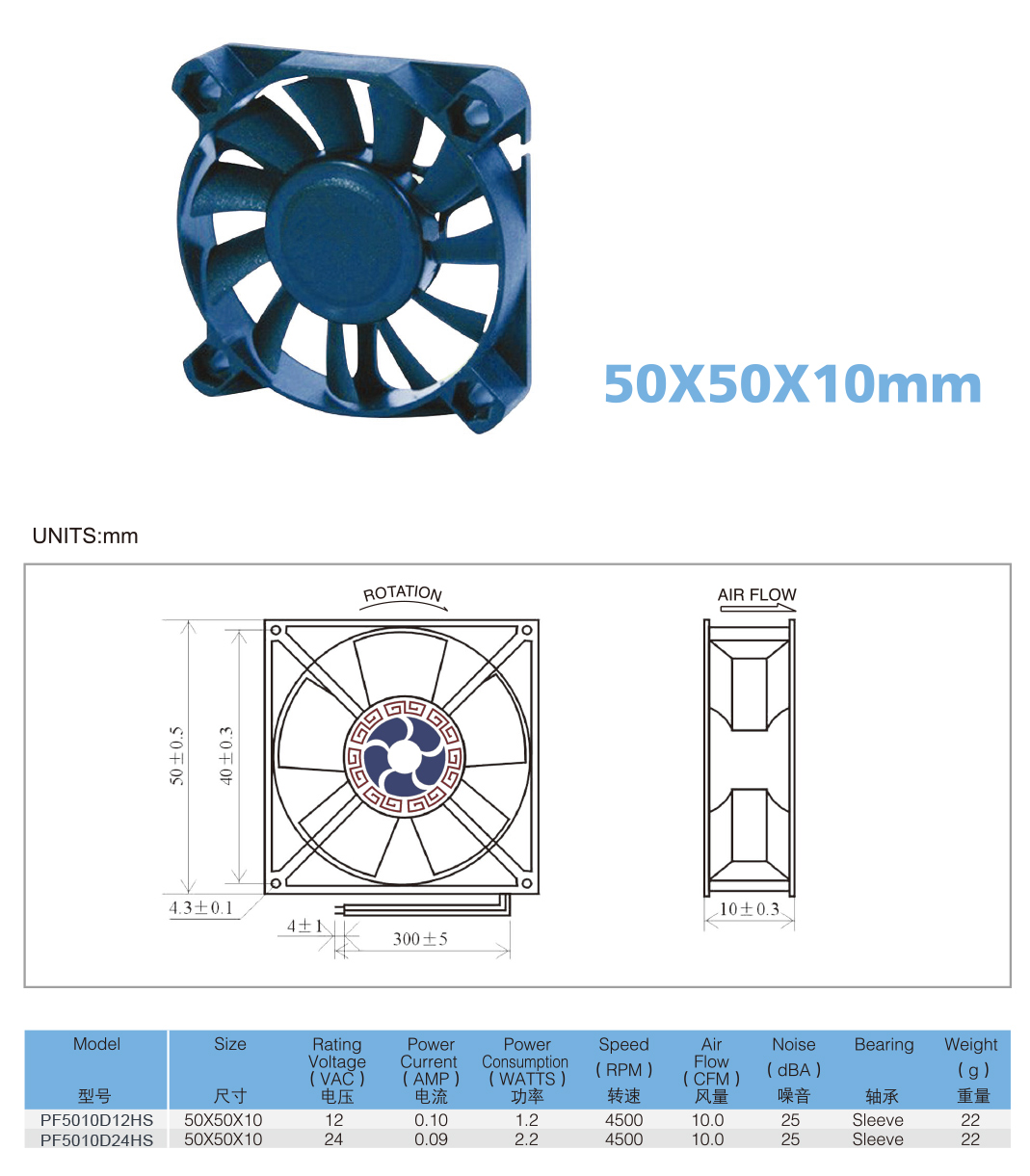

Size:50x50x10mm

Frame:PlasticP.B.T.

Impeller: Plastic P.B.T.

Voltage:5V, 12V ,24V,48V

Beartype: Ball bearing/Sleeve bearing

Motor: Brushless DC, auto restart Impedance & polarityprotected
Operation temperature: -20°C~80°C

Insulation Resistance:10MΩ at 500VDC between lead andframe
Dielectric Strength:1 min at 500VAC/50-60HZ ,current min5mA

Operation Humidity: 20%~85%

Working voltage: Rated voltage±10%

Life at 25^oC: Ball bearing 50,000hr and sleevebearing30,000hr

Specialcan be customized
