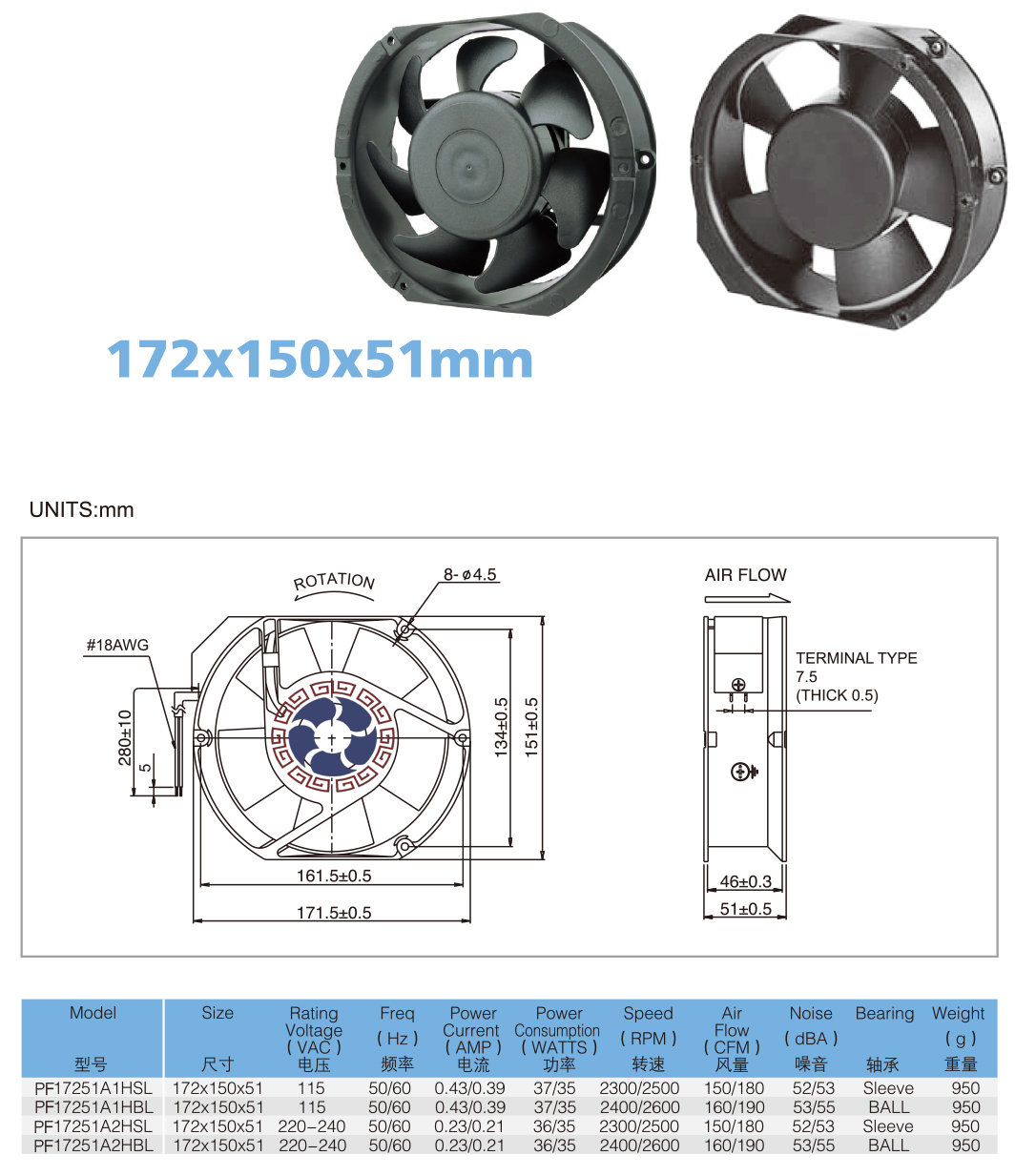

Specifications:

Size:172* 172 * 51mm

WorkingVoltage:AC110V(85V-110V)/AC220V(190V-250V)/AC380V

Certification:CE ROSH

Packing:Eachone with one white box or AsThe customers’ requirement

 Material:

Frame:: AluminumAlloy with plastic-spraying/P.B.T

Impeller: PlasticP.B.T.

Coil:Enamelledcopperwire

Motor:Shade Pole Induction Motor

Beartype:Two Ball bearing/Sleeve bearing

LeadType:Wire Lead /Terminal

Performance:

InsulationResistance:10MΩ at 500VDC between lead and frame

OperationTemperature:-20°C~80°C

DielectricStrength:1 min at 2000vac/50-60Hz,Current＜5mA

OperationHumidity:20%~85%

Use oflife:Ball bearing 50,000 hours and Sleeve bearing20,000 hours (at 25°C)

Special can be customized
