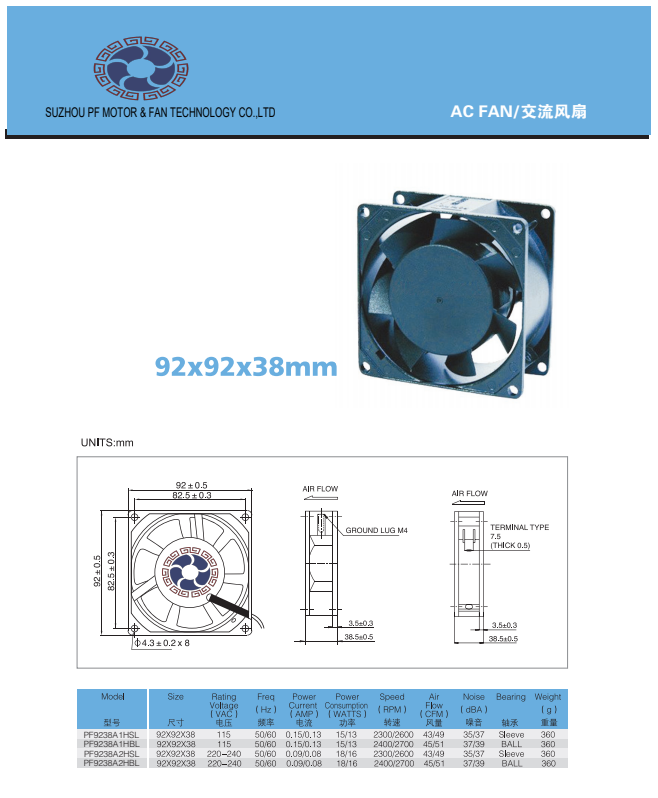

Specifications:

Size:92 * 92 * 38mm

Working Voltage:AC110V(85V-110V)/AC220V(190V-250V)/AC380V

Current:0.08/0.07A(230V)

Frequency:50/60 (Hz)

Power:13/11 (W)

Speed:2500/2600（RPM）

Air flow:37/45（CFM）

Pressure:4.0/4.1（mmH2O）

Noise:35/36 (dBA)

Weight:360 (g)

Certification: CE ROSH SGS CCC ISO9001

Packing:Each one with one white box or As The customers’ requirement

Material:

Frame:: AluminumAlloy with plastic-spraying/P.B.T

Impeller: PlasticP.B.T.

Coil:Enamelledcopper wire

Motor: Shade Pole Induction Motor

Bear type: Ball bearing/Sleeve bearing

Lead Type:Wire Lead /Terminal

Performance:

Insulation Resistance:10MΩ at 500VDC between lead and frame

Operation Temperature:-20°C~80°C

Dielectric Strength:1 min at 1500vac/50-60Hz,Current＜5mA

Operation Humidity:20%~85%

Use of life:Ball bearing 50,000 hours and Sleeve bearing20,000 hours (at 25°C)

 Special can be customized
