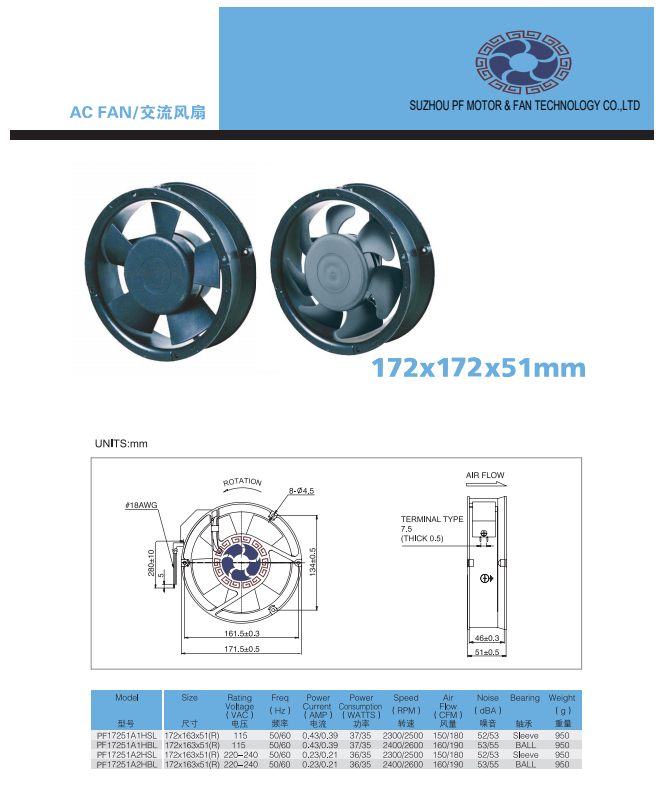

Specifications:
Size: Φ172 * 50mm
Working Voltage:AC110V(85V-110V)/AC220V(190V-250V)/AC380V
Current:0.23/0.21A(230V)
Frequency:50/60 (Hz)
Power:34/32 (W)
Speed:2600/2500（RPM）
Air flow:171/165（CFM）
Pressure:12.8/12.3（mmH2O）
Noise:54/52 (dBA)
Weight:950 (g)
Certification: CE ROSH
Packing:Each one with one white box or As The customers’ requirement
Material:
Frame:: AluminumAlloy with plastic-spraying/P.B.T
Impeller: PlasticP.B.T.
Coil:Enamelledcopper wire
Motor: Shade Pole Induction Motor
Bear type: Ball bearing/Sleeve bearing
Lead Type:Wire Lead /Terminal
Performance:
Insulation Resistance:10MΩ at 500VDC between lead and frame
Operation Temperature:-20°C~80°C
Dielectric Strength:1 min at 1500vac/50-60Hz,Current＜5mA
Operation Humidity:20%~85%
Use of life:Ball bearing 50,000 hours and Sleeve bearing20,000 hours (at 25°C)
Special can be customized
Frame Construction: Aluminum die-cast frame
Impeller Construction: PBT or Thermoplastic UL94V-0
Motor Construction: Brushless AC Motor
Bearings: High precision chrome steel ball bearings or bronze sintered sleeve
Connection: Terminal tabs or 24awg lead wire
Motor Protection: Impedance or thermal protection
Insulation Class B (unless otherwise noted)
Operating temperature range:
- Ball Bearing -40C ~ 70C
- Sleeve Bearing -20C ~ 70C
